Basicscreen
1%, 5%, 10%

x

-

+

Applications

5%

5%

Fabric properties

	1%	5%	10%
	Semi transparent
	30% Polyester, 70% PVC
	480 g/m²	410 g/m²	340 g/m²
	0.65 mm	0.55 mm	0.50 mm
	245 cm
	250 cm

Features / Technical properties

5-6

Flame retardant

Optimised for workstations

Various openness factors

Antimicrobial (ASTM - SGS)

Applicable in humid areas

Digital printing

Oeko-Tex, Greenguard

Special colours from 5’000 m

Weldable

Washing instructions

Optical and solar coefficients (± 5%, DIN EN 410)

Colour
Basicscreen 1%
Colour 3001	Tv(%) 16.8	Ts(%) 20.9	Rs(%) 63.6	As(%) 15.5	Tuv(%) 2.5	Fc() 0.53	gtot() 0.38
Colour 3006	Tv(%) 2.4	Ts(%) 4.3	Rs(%) 20.0	As(%) 75.7	Tuv(%) 1.9	Fc() 0.79	gtot() 0.57
Colour 3007	Tv(%) 2.9	Ts(%) 2.9	Rs(%) 3.3	As(%) 93.8	Tuv(%) 2.9	Fc() 0.90	gtot() 0.65
Colour 3015	Tv(%) 9.0	Ts(%) 14.9	Rs(%) 45.2	As(%) 39.9	Tuv(%) 2.2	Fc() 0.64	gtot() 0.46

Colour
Basicscreen 5%
Colour 3001	Tv(%) 20.3	Ts(%) 24.4	Rs(%) 60.5	As(%) 15.1	Tuv(%) 7.5	Fc() 0.55	gtot() 0.40
Colour 3006	Tv(%) 8.0	Ts(%) 10.1	Rs(%) 20.3	As(%) 69.6	Tuv(%) 7.5	Fc() 0.80	gtot() 0.57
Colour 3007	Tv(%) 7.2	Ts(%) 7.2	Rs(%) 3.4	As(%) 89.4	Tuv(%) 7.2	Fc() 0.90	gtot() 0.65
Colour 3015	Tv(%) 14.4	Ts(%) 20.0	Rs(%) 43.7	As(%) 36.3	Tuv(%) 7.6	Fc() 0.66	gtot() 0.47

Colour
Basicscreen 10%
Colour 3001	Tv(%) 28.3	Ts(%) 32.0	Rs(%) 55.3	As(%) 12.7	Tuv(%) 14.9	Fc() 0.59	gtot() 0.43
Colour 3006	Tv(%) 16.0	Ts(%) 18.3	Rs(%) 18.0	As(%) 63.7	Tuv(%) 15.3	Fc() 0.82	gtot() 0.59
Colour 3007	Tv(%) 16.3	Ts(%) 16.3	Rs(%) 3.1	As(%) 80.6	Tuv(%) 16.2	Fc() 0.91	gtot() 0.66
Colour 3015	Tv(%) 22.4	Ts(%) 27.8	Rs(%) 28.5	As(%) 43.7	Tuv(%) 14.2	Fc() 0.76	gtot() 0.55

Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Data Sheet

Downloads

Flame retardant

B-s2,d0 (EN 13501-1)

Type B (BS 5867-2) 10%

Type B (BS 5867-2) 5%

Type B (BS 5867-2) 1%

On request:

NFPA 701

Class 1 (UNI 9176/77)

Certificates

Oeko-Tex

On request:

Greenguard

ASTM

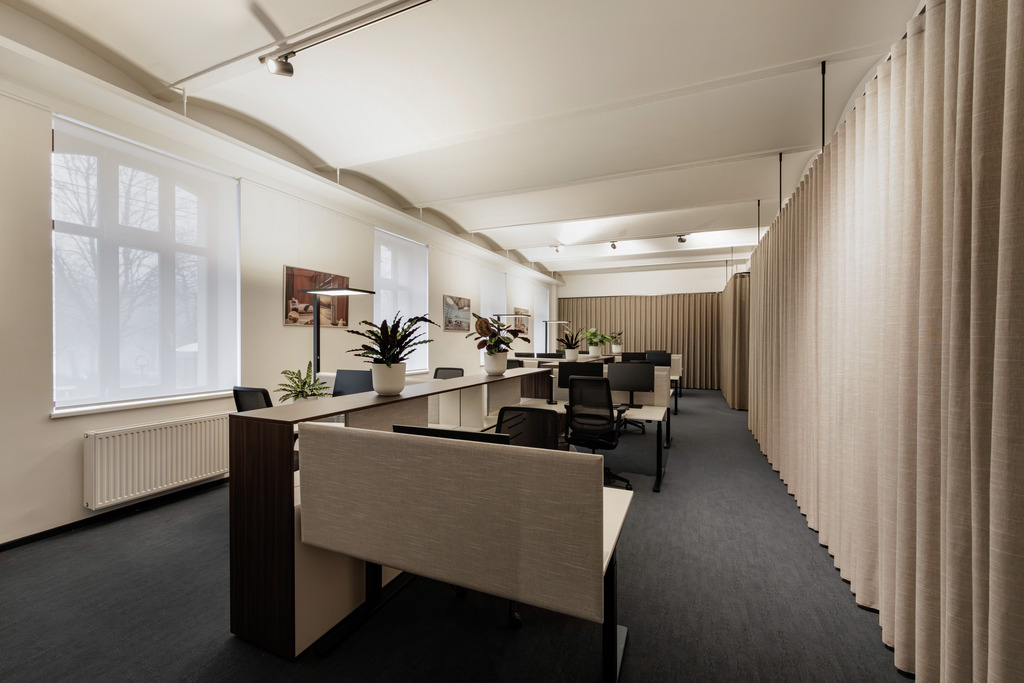

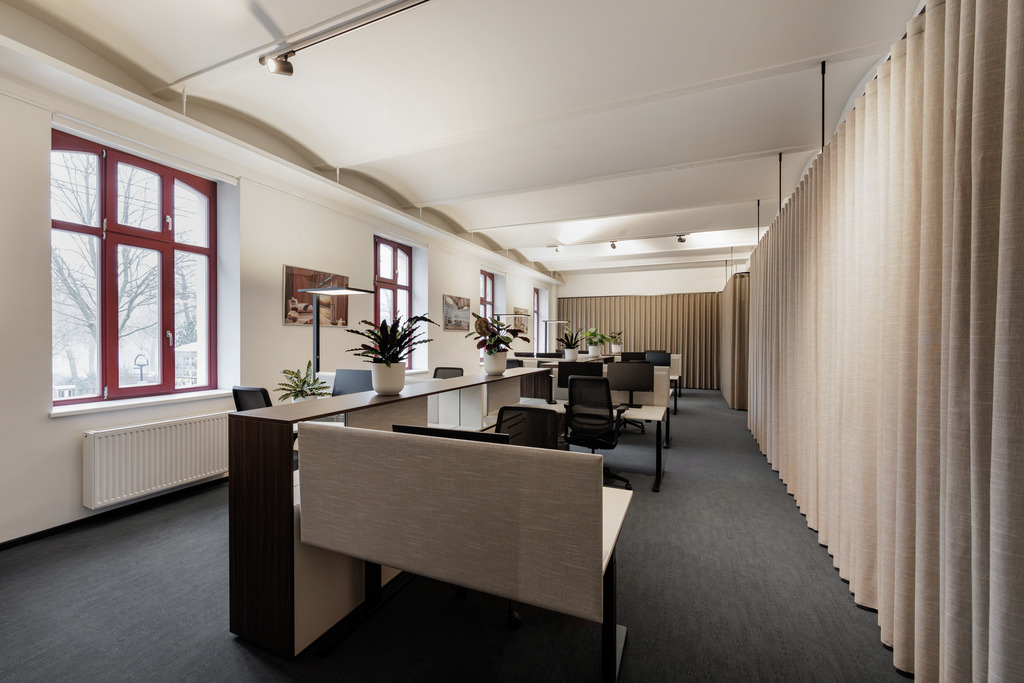

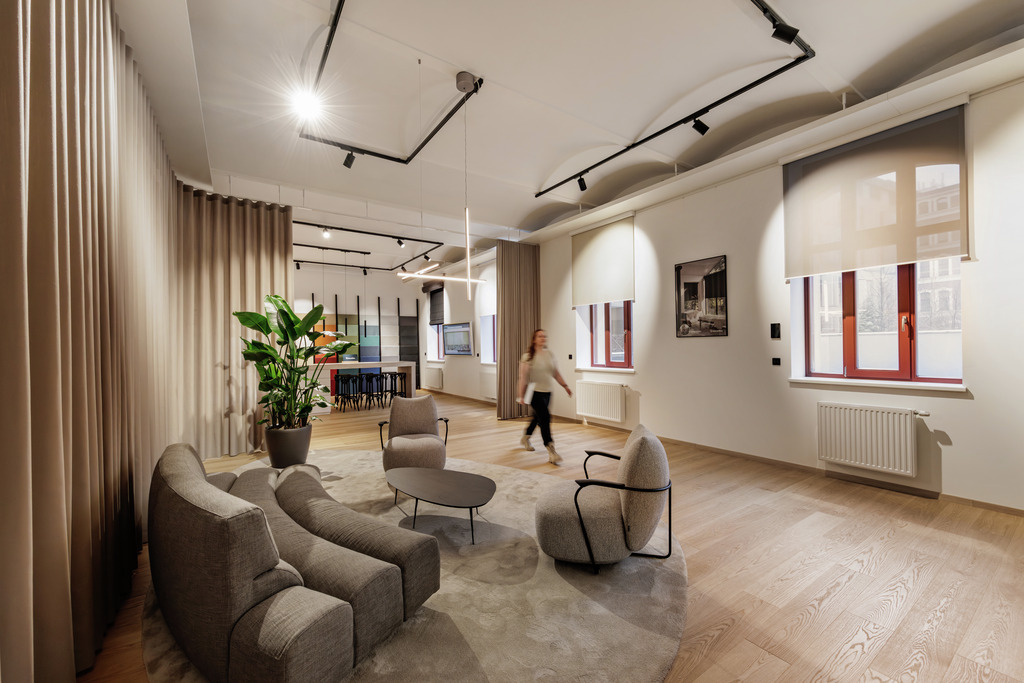

Inspiration
